Freq51 Infrastructure

This page lists deployed routers, router lates, and strategically placed clients. Each entry has a spec table followed by a Site survey with associated images. North views are shown first when both are available.

For deployment guidelines, see Router Deployment Guide.

Table of Contents

Utah Infrastructure

Routers
Router Lates
Strategic Clients

Southern Idaho Infrastructure

Routers
- MHR — Mount Harrison Router
- ISR — Indian Springs Router
Router Lates
- KBS — Kimama Butte Station
Strategic Clients
- SSL — Second Star Labs
- T2T — The 2 Towers

Western Idaho Infrastructure

Routers

Utah Infrastructure

Infrastructure located within Utah.

Routers

FPR — Francis Peak Router

Location: Francis Peak (Tertiary Peak)

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
FPR – Francis Peak Router v5	Femtofox CE + Baymesh 3 filter	Alfa 5 dBi Omni	3S3P 18650	Eco-Worthy 25W	MEDIUM_FAST	51	ALL	2.6.11

Site survey

North
FPR North

South
FPR South

LMR — Lake Mountain Router

Location: Lake Mountain Radio Tower

Node Name	Radio (modules + enclosure)	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
LAKE – Lake Mountain Rtr	RPi CM3 · Ebyte E22-900M30S · Taoglas filter · Nebra Miner Enclosure	3 dBi	Hard-wired	N/A	MEDIUM_FAST	51	ALL	Latest Alpha (auto)

Site survey

North/South
LMR North-South

NPR — Nelson Peak Router

Location: Nelson Peak

Node Name	Radio (modules + enclosure)	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
NPR – Nelson Peak Router	Nebra with 1W radio and a murata filter	45cm gizont 7dBi	PoE Powered, GOLDENMATE 1000VA/800W Lithium UPS Battery Backup	None	MEDIUM_FAST	51	ALL	2.7.13

Site survey

North

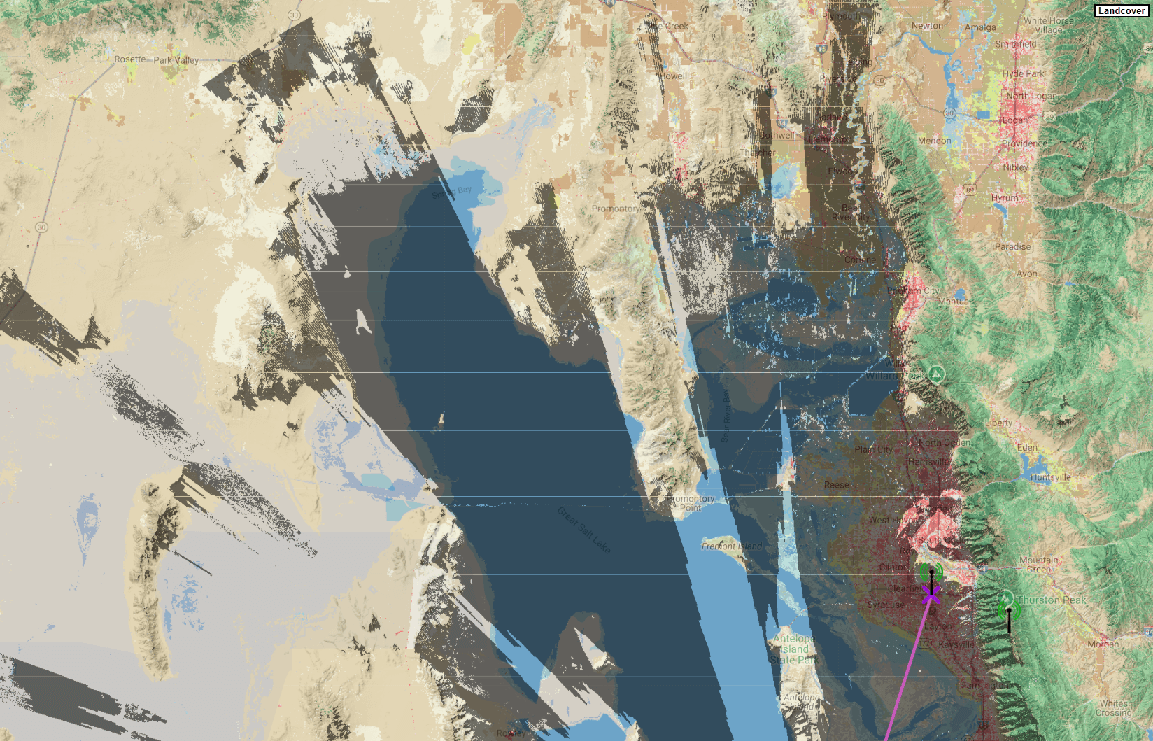

NPR North

South
NPR South

Router Lates

AUR — Aurora Uranialis

Location: Ensign Peak

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
AUR – Aurora Uranialis	RAK4631 + GPIO Labs ISM filter	Alfa 5 dBi Omni	1S4P 21700 Molicel P50B (20 Ah)	10 W	MEDIUM_FAST	51	ALL	2.6.4

Includes BME680 telemetry every 1800 s.

Site survey

North

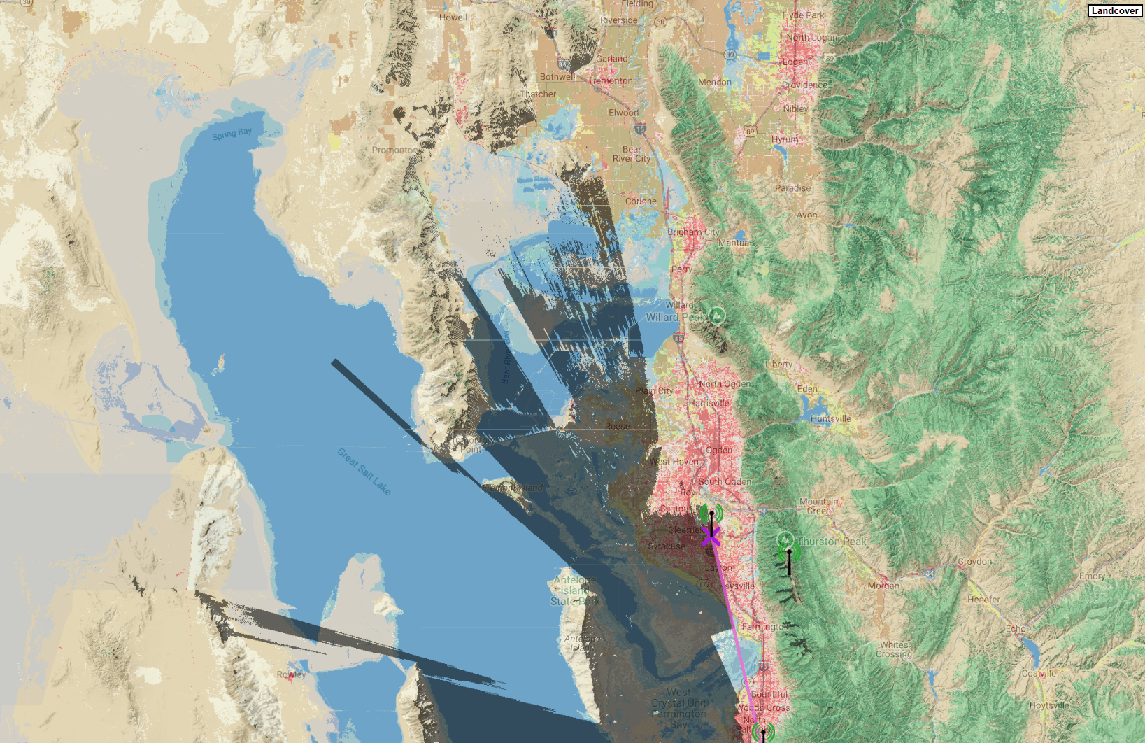

AUR North

South

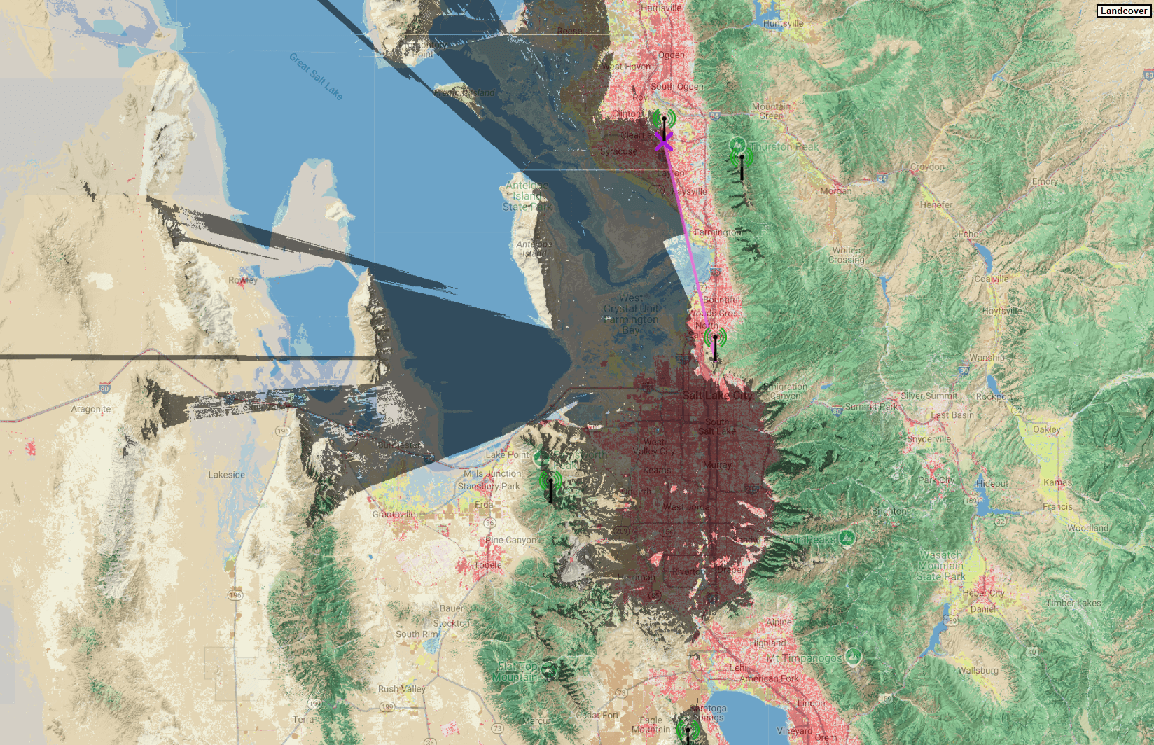

AUR South

POTM — Point of the Mountain

Location: North-facing ridgeline

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
POTM – Router Late	RAK19003 + RAK4631	4 dBi	2 × 18650	6 W	MEDIUM_FAST	51	ALL	2.6.10

Site survey

North

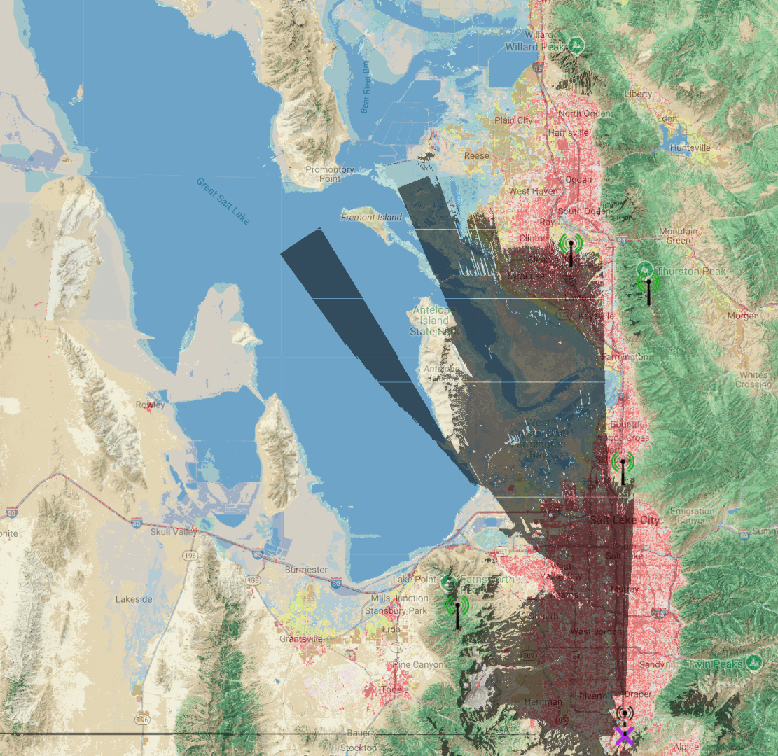

POTM North

South

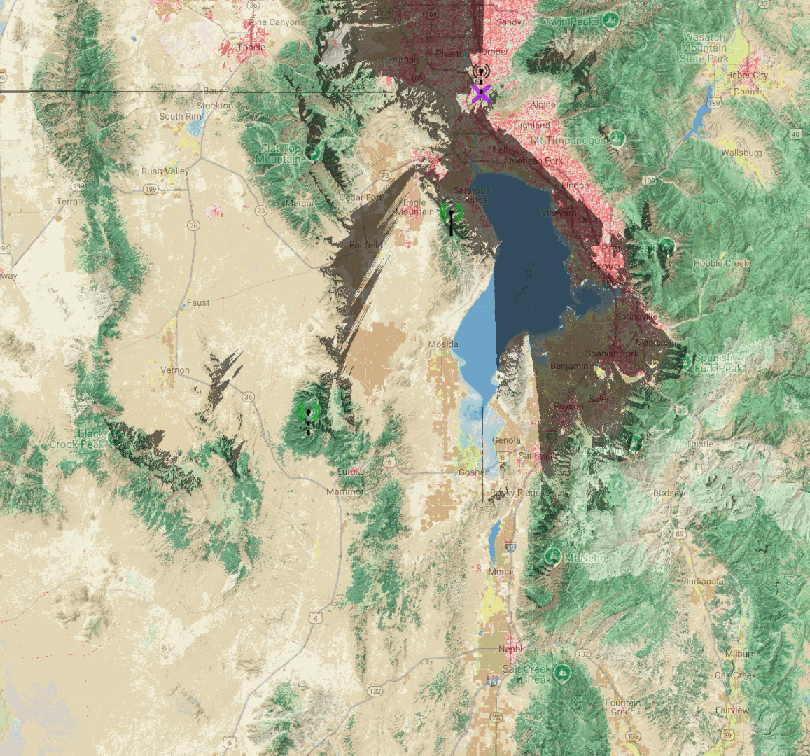

POTM South

STIR — Stansbury Island RTR

Location: Stansbury Island

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
STIR – Stansbury Island RTR	Rak 4631 + BME 680 + GPS	Alfa 5 dBi Omni	16AH	6W	MEDIUM_FAST	51	ALL	2.7.11

Site survey

STIR

Strategically Placed Clients

👽 — Alien Tower 🛸

Location: Alien Tower - Draper

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
👽 — Alien Tower 🛸	RAK4631 + GPIO Labs ISM filter	Alfa 5 dBi Omni	3 x 18650	6 W	MEDIUM_FAST	51	ALL	2.7.11

Site survey

C6C — Aurora Ceresia

Location: Hill AFB – Weber State overlook

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
C6C – Aurora Ceresia	RAK4631 + GPIO Labs ISM filter	Alfa 5 dBi Omni	1S4P 21700 Molicel P50B (20 Ah)	10 W	MEDIUM_FAST	51	ALL	2.6.4

Site survey

C6C

WC1 — Wasatch Crest 1

Location: Silver Peak

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
WC1 – Wasatch Crest 1.1	SolarXiao Base + Murata DFCB2915MLDJAA	Gizont 7dBi 45cm	1S4P Molicel P45B (18Ah)	6 W	MEDIUM_FAST	51	ALL	2.6.11

Site Survey

WC1

WC2 — Wasatch Crest 2

Location: Squaretop

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
WC2 – Wasatch Crest 2	XIAO NRF52 + Murata DFCB2915MLDJAA	Gizont 7dBi 45cm	1S2P Molicel P45B (9 Ah)	6 W	MEDIUM_FAST	51	ALL	2.6.11

Site Survey

WC2 _{^{Return to Table of Contents}}

Southern Idaho Infrastructure

Infrastructure physically located within Southern Idaho west of Mountain Home through Twin Falls, Burley, and the I-84 corridor to UT.

Routers

MHR — Mount Harrison Router

Location: Mount Harrison - Southern Idaho

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
MHR — Mount Harrison Router	Station-G2	Rokland 8dBi Low Profile Omni	3S8P 12.6v 40AH	25w 18v ECO-WORTHY	MEDIUM_FAST	51	ALL	2.6

Site Survey

East HarrisonEast

West HarrisonWest

ISR — Indian Springs Router v2

Location: South Hills - Sugarloaf

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
ISR — Indian Springs Router v2	RAK WisBlock 4631 + Airbuddy Amplifier	ALFA 5dbi Omni	1S6P 3.7v 40AH	10w 18v ECO-WORTHY	MEDIUM_FAST	51	ALL	2.6.11

Site Survey

East IndianSpringsEast

West IndianSpringsWest

Router Lates

KBS — Kimama Butte Station

Location: Kimama Butte

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
KBS — Kimama Butte Station	RAK WisBlock 4631	Hexa Boost 3.6ft 8dBi Omni	1S3P 3.7v 10AH	6w 5v Shoshine	MEDIUM_FAST	51	ALL	2.6.11

Site Survey

East KimamaEast

West KimamaWest

SHE — South Hills East

Location: South Hills - Dry Creek

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
SHE — South Hills East	RAK WisBlock 4631	ALFA 5dbi Omni	1S6P 3.7v 40AH	6w 5v Shoshine	MEDIUM_FAST	51	ALL	2.6.11

Site Survey

SouthHillsEast

Strategically Placed Clients

SSL — Second Star Labs

Location: Second Star Labs

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
SSL — Second Star Labs	Station G2	Rokland 10dBi Backcountry	12v 16AH LiFePo4	25w 18v ECO-WORTHY	MEDIUM_FAST	51	ALL	2.6.11

Site Survey

SSL

T2T — The 2 Towers

Location: Flat Top Butte

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
T2T — The 2 Towers	Heltec T114	ALFA 5dbi Omni	1S6P 3.7v 40AH	6w 5v Shoshine	MEDIUM_FAST	51	ALL	2.6.11

Site Survey

SSL _{^{Return to Table of Contents}}

Western Idaho Infrastructure

Infrastructure physically located within Western Idaho including Boise, Meridian, Nampa, Mountain Home and surrounding areas.

Routers

HPR — Hayden Peak Router

Location: Hayden Peak - Boise

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
HPR — Hayden Peak Router	Femtofox Pro	Rokland 8dBi Low Profile Omni	1S8P 3.7 40AH0	25w 18v ECO-WORTHY	MEDIUM_FAST	51	ALL	2.6

Site Survey

North HaydenNorth

South HaydenSouth

TVM Pearl

Location: Treasure Valley - Pearl

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
TVM Pearl	RAK19007 + 4361	10 dBi Helium Omni	10000 mAH Lipo 3.7	10w 5v	MEDIUM_FAST	51	ALL	2.6.11

Site Survey

TVM Pearl TVMPearl

TVM Tablerock

Location: Treasure Valley - Tablerock

Node Name	Radio	Antenna	Battery	Solar	Modem Preset	Slot	Rebroadcast Mode	Firmware
TVM Pearl	RAK19007 + 4361	10 dBi Helium Omni	10000 mAH Lipo 3.7	10w 5v	MEDIUM_FAST	51	ALL	2.6.11

Site Survey

TVM Tablerock TVMTablerock _{^{Return to Table of Contents}}
