Freq51 Infrastructure
This page lists deployed routers, router lates, and strategically placed clients. Each entry has a spec table followed by a Site survey with associated images. North views are shown first when both are available.
For deployment guidelines, see Router Deployment Guide.
Table of Contents
Utah Infrastructure
Idaho Infrastructure
Utah Infrastructure
Infrastructure located within Utah.
Routers
FPR — Francis Peak Router
Location: Francis Peak (Tertiary Peak)
| Node Name | Radio | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| FPR – Francis Peak Router v5 | Femtofox CE + Baymesh 3 filter | Alfa 5 dBi Omni | 3S3P 18650 | Eco-Worthy 25W | MEDIUM_FAST | 51 | ALL | 2.6.11 |
Site survey
North
South
LMR — Lake Mountain Router
Location: Lake Mountain Radio Tower
| Node Name | Radio (modules + enclosure) | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| LAKE – Lake Mountain Rtr | RPi CM3 · Ebyte E22-900M30S · Taoglas filter · Nebra Miner Enclosure | 3 dBi | Hard-wired | N/A | MEDIUM_FAST | 51 | ALL | Latest Alpha (auto) |
Site survey
North/South
NPR — Nelson Peak Router
Location: Nelson Peak
| Node Name | Radio (modules + enclosure) | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| NPR – Nelson Peak Router | Nebra with 1W radio and a murata filter | 45cm gizont 7dBi | PoE Powered, GOLDENMATE 1000VA/800W Lithium UPS Battery Backup | None | MEDIUM_FAST | 51 | ALL | 2.7.13 |
Site survey
North
South
Router Lates
AUR — Aurora Uranialis
Location: Ensign Peak
| Node Name | Radio | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| AUR – Aurora Uranialis | RAK4631 + GPIO Labs ISM filter | Alfa 5 dBi Omni | 1S4P 21700 Molicel P50B (20 Ah) | 10 W | MEDIUM_FAST | 51 | ALL | 2.6.4 |
Includes BME680 telemetry every 1800 s.
Site survey
North
South
POTM — Point of the Mountain
Location: North-facing ridgeline
| Node Name | Radio | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| POTM – Router Late | RAK19003 + RAK4631 | 4 dBi | 2 × 18650 | 6 W | MEDIUM_FAST | 51 | ALL | 2.6.10 |
Site survey
North
South
STIR — Stansbury Island RTR
Location: Stansbury Island
| Node Name | Radio | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| STIR – Stansbury Island RTR | Rak 4631 + BME 680 + GPS | Alfa 5 dBi Omni | 16AH | 6W | MEDIUM_FAST | 51 | ALL | 2.7.11 |

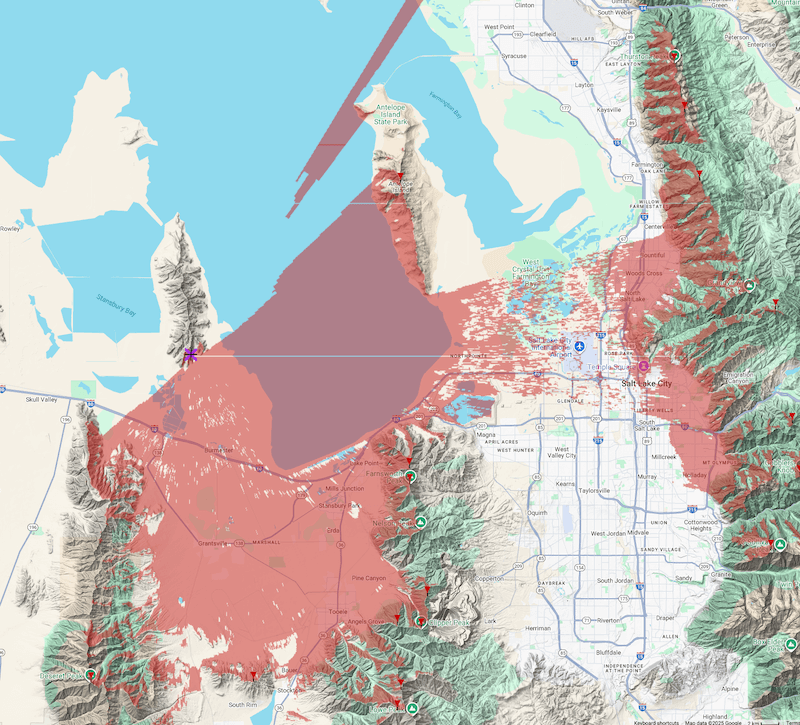

Site survey
Strategically Placed Clients
👽 — Alien Tower 🛸
Location: Alien Tower - Draper
| Node Name | Radio | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| 👽 — Alien Tower 🛸 | RAK4631 + GPIO Labs ISM filter | Alfa 5 dBi Omni | 3 x 18650 | 6 W | MEDIUM_FAST | 51 | ALL | 2.7.11 |
Site survey
C6C — Aurora Ceresia
Location: Hill AFB – Weber State overlook
| Node Name | Radio | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| C6C – Aurora Ceresia | RAK4631 + GPIO Labs ISM filter | Alfa 5 dBi Omni | 1S4P 21700 Molicel P50B (20 Ah) | 10 W | MEDIUM_FAST | 51 | ALL | 2.6.4 |
Site survey
WC1 — Wasatch Crest 1
Location: Silver Peak
| Node Name | Radio | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| WC1 – Wasatch Crest 1.1 | SolarXiao Base + Murata DFCB2915MLDJAA | Gizont 7dBi 45cm | 1S4P Molicel P45B (18Ah) | 6 W | MEDIUM_FAST | 51 | ALL | 2.6.11 |
Site Survey
WC2 — Wasatch Crest 2
Location: Squaretop
| Node Name | Radio | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| WC2 – Wasatch Crest 2 | XIAO NRF52 + Murata DFCB2915MLDJAA | Gizont 7dBi 45cm | 1S2P Molicel P45B (9 Ah) | 6 W | MEDIUM_FAST | 51 | ALL | 2.6.11 |
Site Survey
Idaho Infrastructure
Infrastructure physically located within Idaho.
Routers
MHR — Mount Harrison Router
Location: Mount Harrison
| Node Name | Radio | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| MHR — Mount Harrison Router | Femtofox Pro | Rokland 10dBi Backcountry | 3S8P 12.6v 40AH0 | 25w 18v ECO-WORTHY | LONG_FAST | 51 | ALL | 2.6 |
Site Survey
East
West
ISR — Indian Springs Router v2
Location: South Hills
| Node Name | Radio | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| ISR — Indian Springs Router v2 | RAK WisBlock 4631 + Airbuddy Amplifier | ALFA 5dbi Omni | 1S6P 3.7v 40AH | 10w 18v ECO-WORTHY | LONG_FAST | 51 | ALL | 2.6.11 |
Site Survey
East
West
Router Lates
KBS — Kimama Butte Station
Location: Kimama Butte
| Node Name | Radio | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| KBS — Kimama Butte Station | RAK WisBlock 4631 | Hexa Boost 3.6ft 8dBi Omni | 1S3P 3.7v 10AH | 6w 5v Shoshine | LONG_FAST | 51 | ALL | 2.6.11 |
Site Survey
East
West
Strategically Placed Clients
SSL — Second Star Labs
Location: Second Star Labs
| Node Name | Radio | Antenna | Battery | Solar | Modem Preset | Slot | Rebroadcast Mode | Firmware |
|---|---|---|---|---|---|---|---|---|
| SSL — Second Star Labs | Station G2 | Rokland 10dBi Backcountry | 12v 16AH LiFePo4 | 25w 18v ECO-WORTHY | LONG_FAST | 51 | ALL | 2.6.11 |
Site Survey
